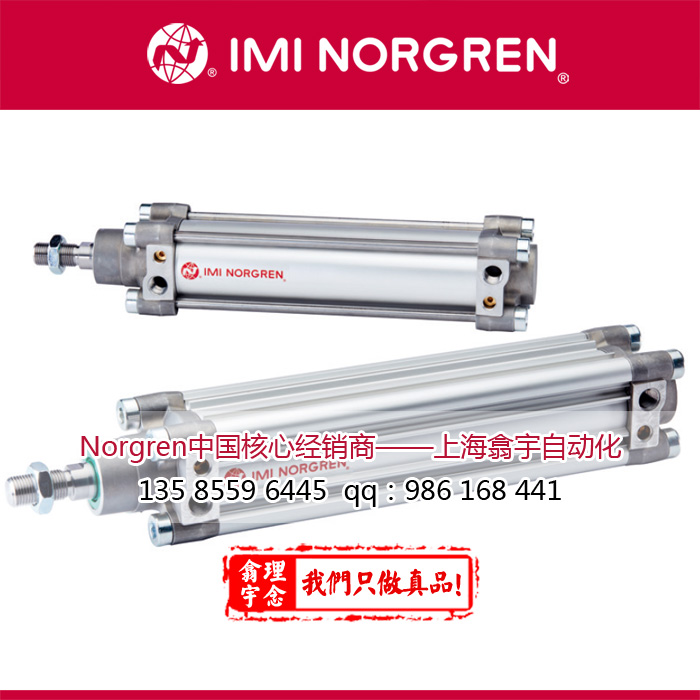

ø 32 ... 320 mm
> High performance adaptive cushioning system “ACS”
> Low temperature version down to -40°C
> High temperature version down to +150°C
> 16 bar version available
Medium:
Compressed air, filtered,lubricated or non-lubricated
Standard:
ISO 15552
Operation:
Double acting,adjustable cushioning
Operating pressure:
ø 32 ... 125 mm (Profile barrel) 1 ... 12 bar (14 ... 174 psi)
ø 32 ... 200 mm (Round barrel)1 ... 16 bar (14 ... 232 psi)
ø 250 & 320 mm (Round barrel)1 ... 10 bar (14 ... 145 psi)

Ports:
G1/8 ... 1
Cylinder diameters:
32, 40, 50, 63, 80, 100, 125,160, 200, 250, 320 mm
Standard strokes:
25, 50, 80, 100, 125, 160, 200,250, 320, 400, 500 mm
Non-standard strokes:
Available (5 ... 2800 mm)

Operating temperature:
ø 32 ... 125 mm“Standard version”-20 ... +80°C max. (-4 ... +176°F)
ø 160 ... 320 mm“Standard version”-10 ... +80°C max. (+14 ... +176°F)
ø 32 ... 320 mm“High temperature version” (T)0 ... +150°C max.(-17,7 ... +302°F)
ø 32 ... 200 mm“Low temperature version” (L)-40 max. ... +80°C max.(-40 ... +176°F)
Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Standard Materials:
Barrel: Anodised aluminium
End covers: Pressure diecast
aluminium (ø 200 ... 320 mm
gravity cast aluminium)
Piston rod: Stainless steel(martensitic)
Piston rod seals: PUR(ø 160 ... 320 mm NBR)
Piston seals: PUR(ø 160 ... 320 mm NBR)
‘O’-rings: NBR
